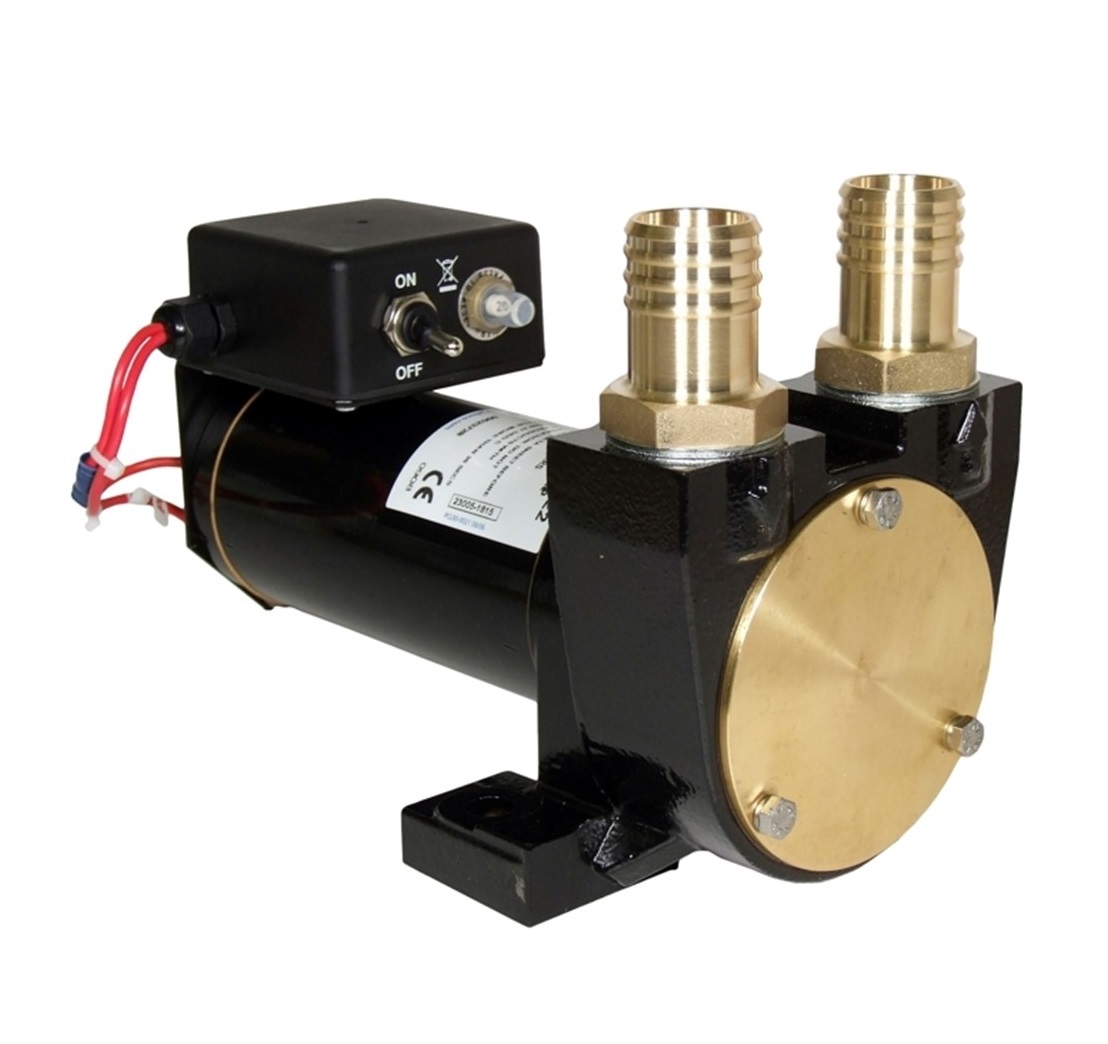

FUEL PUMP 100L 24V
FUEL PUMP 100L 24V
Self-priming diesel transfer pump Up to 100 litres/minute 24 volt dc
With switch/fuseholder & 1 1/4” hose adapter
- Connections: - 1” BSP (parallel) threaded ports.
- Dimensions: - 264 mm long, 145mm wide, 182mm high
- Output: - 105 litres/minute. Maximum recommended total head 15m (6m for continuous duty)
- Maximum Current: 24(amps)
- Heavy duty, continuously rated diesel fuel transfer pump
- Robust cast iron body, bronze sliding vanes
- Unaffected by temperature extremes: suitable for use from –30°C° to +50°C
- Self-priming from dry up to 5m vertical lift
- Use minimum 32mm (1¼”) bore hose
- IP55 motor enclosure
