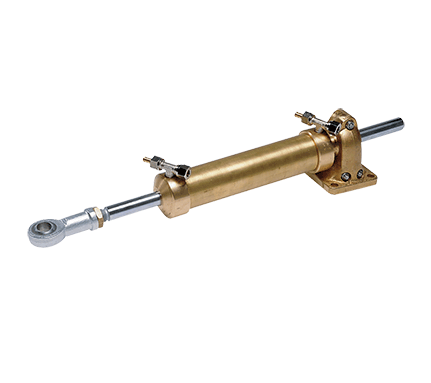

High quality brass bodied hydraulic cylinder for larger yachts and work boats. Supplied with zinc plated rod end (stainless steel upgrade available) and compression fittings with bleed nipples.
Wheel Turns (lock to lock with HTP pump models)
HTP42: 8.5
Dimensions
Stroke: 225mm
Volume: 356cm³
Length of tiller arm: 196mm
Rod End Thread: M20
Weight: 8Kg
Technical details:
Max. Torque: 1717 Nm (175 kgm) (1266 ft.lbs)
Torque at 35° and 56 kg/cm²: 1373 Nm (140 kgm) (1013 ft.lbs)
Pressure 5492 kPa (56 kg/cm²) (797 lbs/sq.inch).
Connections: G¼ female pipe thread.
Total rudder angle: 70° (2 x 35°).
