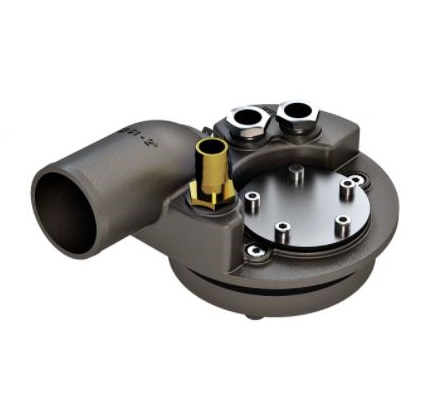

This connection kit has an anodized, salt water resistant aluminium lid with a counter flange and arubber seal which is tightened very easily with just3 bolts compressing the rubber seal to ensure a perfect seal. The set contains all the required connections, only 1 single hole with a diameter of 114 mm needs to be cut in the top of the fuel tank. This connection kit is suitable for plastic, metal or GRP diesel or petrol fuel tanks.
The following connections are supplied
Hose connection for filling Ø 38 or 51 mm and a 16 mm tank ventilation connection
Fuel suction pipe according to model selected
Ø8 mm, max. tank depth 440 mm
Ø10 mm, max. tank depth 850 mm
Ø15mm, max. tank depth 970 mm
Fuel return for Ø8, 10, 15 mm hose
Mounting flange for tank level sensors (connection is suitable for sensors with a 5-hole SAE flange)
Terminal tag 6,3 mm for ground wire
2 Mounting straps to secure tank
